Noctua NH-U12S Heatsink Review
Noctua NH-U12S Heatsink Review
  0%

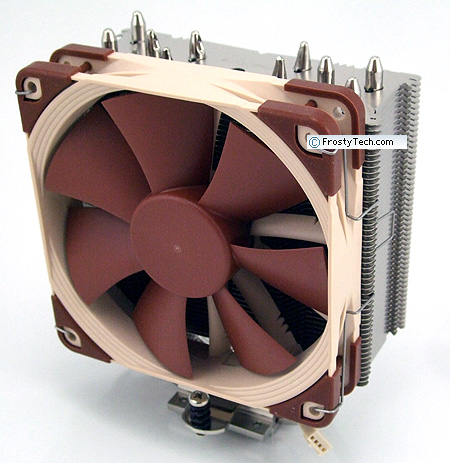

Abstract: The Noctua NH-U12S heatsink is built around five 6mm diameter copper heatpipes and a 108mm tall aluminum fin stack. Where the heatsink interfaces with the processor, we find a beautifully machined nickel plated copper heat spreader.

 Manufacturer  Category  Published  Author
Noctua   Cooling / Heatsinks   Jan 02, 2014   Max Page

Home > Reviews > Page: Intel LGA2011 Heatsink Temperature Comparisons

FrostyTech Mk.III Synthetic Thermal Heatsink Test Results
Intel Core i7, Extreme Edition class heatsinks tested at a 200W heat load.
Results based on readings from a 38x38mm copper interface die with 200W heat load on the Intel version of the Mk.III Test Platform. Temperature results listed for each heatsink were calculated by determining the rise over ambient temperatures at time of test. Information on Frostytech's test methodology is available here.
Socket LGA2011/1366 compatible CPU heatsinks
manufacturer: model no.: *fan speed: 200w thermal test (°c) noise level (dba)

Coolermaster Seidon 240M high 13.4 55.6
Silverstone Tundra TD02 high 13.6 53.0
Coolermaster Glacer 240L high 14.1 52.5
NZXT Kraken X60 high 14.5 60.7
Noctua NH-U14S 17.0 47.3
Coolermaster Seidon 120V high 17.5 54.3
NZXT Kraken X40 high 18.2 59.4
Silverstone Tundra TD03 high 18.7 58.1
Noctua NH-U12S (+2nd fan) 18.8 49.8
Silverstone Argon AR01 high 18.8 53.0
Coolermaster Eisberg 240L high 19.1 50.5
Raijintek Themis high 19.7 52.8
Coolermaster V8 GTS high 20.0 59.7
Corsair Hydro H80i high 21.1 64.0
Noctua NH-U12S 21.1 46.2
Raijintek Ereboss high 21.4 49.7
Zalman Reserator 3 Max high 21.6 58.9
Scythe Mugen 4 high 21.7 41.9
Zalman LQ315 high 21.9 50.8
Silverstone NT06-P high 22.1 51.6
Raijintek Aidos high 23.0 55.6
Zalman LQ310 high 23.8 52.7
Zalman LQ320 high 25.5 50.2
Silverstone NT01-Pro high 35.8 40.4
200w thermal test (°c) noise level (dba)
*heatsinks are ranked according to the 125w thermal test results column (rise over ambient temp.). low temperatures with low noise levels are considered best. for reference heatsinks with variable-speed fans, only the high speed (12v) fan test result is included in the comparison sheet; more detailed results reside in each specific heatsink review.

Frostytech's socket LGA2011 Intel synthetic thermal test platform stresses socket LGA2011/1366 compatible heatsinks with a 200W heat load. Keep in mind that the AMD Integrated Heat Spreader and Intel LGA2011 Integrated Heat Spreader both measure ~38x38mm, so these test results can be extrapolated to AMD processor scenario's as well.

With a 200W heat load applied by the Intel LGA2011/1366 version of FrostyTech's synthetic thermal test platform, the Noctua NH-U12S heatsink easily maintains a temperature test result of 21.1°C over ambient at 1500RPM fan speed. This puts the NH-U12S near the middle of this short list of 200Watt tested CPU coolers.

Adding a second fan to the back of the NH-U12S fin stack improved performance slightly, reducing temperature results from 21.1°C to 18.8°C over ambient.

Ultimately, the addition of a second (user-supplied) NF-F12 PWM fan has a small impact on thermal performance. Noctua have designed a great heatsink here, one that is better suited to compact computer systems where large 140mm fan equipped heatsinks just won't fit. Recommended.

Related Articles:

The Top 5 best heatsinks for low noise and low temperature are ranked here. For more reviews on the latest heatsinks and cooling solutions, rely on FrostyTech's inventory of 400+ heatsink reviews. Here are a few other articles that you might enjoy as well.

- Noctua NH-L9i Low Profile Heatsink Review
- Raijintek Ereboss Heatsink Review
- Zalman CNPS2X Low Profile Heatsink Review
- Silverstone NT01-Pro Heatsink Review
- Raijintek Themis Heatsink Review
- Raijintek Aidos Heatsink Review
- Silverstone Argon AR01 Heatsink Review
- DeepCool Gammaxx S40 Heatsink Review

 Previous Page ° Heat Sink Review Index

Table of Contents:

 1:  Noctua NH-U12S Heatsink Review
 2:  360° View - Noctua NH-U12S Heatsink
 3:  Acoustic Sample and Heatsink Sound Levels
 4:  AMD Heatsink Temperature Comparisons
 5:  Intel LGA115x Heatsink Temperature Comparisons
 6: — Intel LGA2011 Heatsink Temperature Comparisons
