Thermolab Nano Silencer TLI-U Low-Profile Heatsink Review
Thermolab Nano Silencer TLI-U Low-Profile Heatsink Review
  72%
Abstract: The Nano Silencer TLI-U is ideally sized for 1U server chassis, nano formfactor PCs, car PCs and media center microATX-style cases. The entire TLI-U heatsink stands no taller than 45mm.

 Manufacturer  Category  Published  Author
Thermolab   Cooling / Heatsinks   May 03, 2008   Max Page

Home > Reviews > Page: 360° View - Thermolab Nano Silencer TLI-U Heatsink

360° View - Thermolab Nano Silencer TLI-U Heatsink


Information on Frostytech's test methodology is available here.

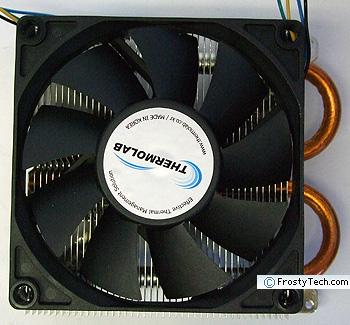

The 80mm PWM fan spins at 3000RPM by default. Small wire clips hold the fan in place, so it is possible to replace the unit with another 80mm fan is desired. A standard 4-pin PWM motherboard header provides power, and is backwards compatible with 3pin connectors. The aluminum fins are 0.37mm thick and the fin pitch is 1.45mm.

Two 6mm diameter sintered wick copper heatpipes thread their way from the aluminum base block towards the outer edges of the Thermolab Nano Silencer TLI-U heatsink. The base block is 7mm thick, the entire heatsink stands just 39mm tall excluding the mounting clips.

The base of the Thermolab Nano Silencer TLI-U is pre-coated with a patch of thermal interface material. It measures 32x30.5mm in size. The two LGA775 mounting clips are firmly attached to the frame of the heatsink.

 Previous Page ° ° Next Page

Table of Contents:

 1:  Thermolab Nano Silencer TLI-U Low-Profile Heatsink Review
 2: — 360° View - Thermolab Nano Silencer TLI-U Heatsink
 3:  Acoustic Comparisons and Base Surface Quality
 4:  Intel LGA775 Final Heatsink Temperature Comparisons
