Akasa AK-965 Intel Core 2 Duo Heatsink Review
Akasa AK-965 Intel Core 2 Duo Heatsink Review
  84%
Abstract: Akasa's AK-965 heatsink utilizes a 95mm PWM fan spins only as fast as needed to achieve good temperature control, and works well at moving air relatively quietly through the aluminum fins.

 Manufacturer  Category  Published  Author
Akasa   Cooling / Heatsinks   Jul 01, 2007   Max Page

Home > Reviews > Page: 360° View - Akasa AK-965 heatsink

360° View - Akasa AK-965 Heatsink
Information on Frostytech's test methodology is available here.

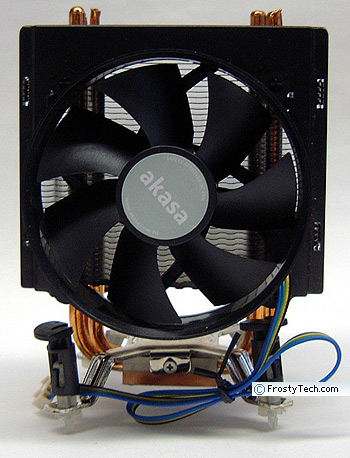

The Heatsink Fan:
The three 6mm diameter copper heatpipes stick out from the top of the Akasa AK-965 heatsink. The aluminum fins are swaged in place over the heatpipes, not soldered. Each fin is 105x58mm in size. The fan is held in place on the plastic shroud with 80mm mounting points, and connects with a 4-pin PWM power cable. The fan is backwards compatible with 3-pin power connectors.

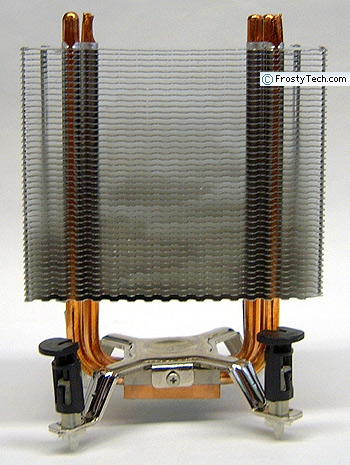

Heatsink Exposed:
The three copper heatpipes rise up 130mm through ~50 aluminum fins, the fins are 0.03mm thick and spaced 1.8mm apart. The copper base is soldered to each of the heatpipes for a joint with low thermal resistance. The fan and shroud clip on to the fins directly with some tabs along the side. The LGA775 mounting clip floats on top of the base with a small pivot so the heatsink can self-level.

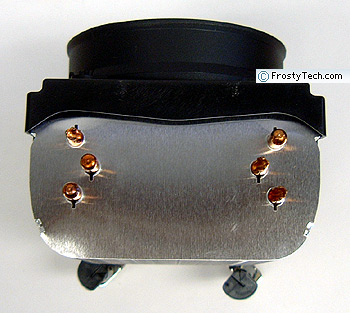

Heatsink Top:
The fan is the most important component of any heatsink. In this case the 95mm Akasa fan is a 7-bladed unit that spins at 600-2500RPM. The fan draws power from a PWM compliant 4-pin motherboard connector. There is no grill to protect the fan from errant wires inside the computer case.

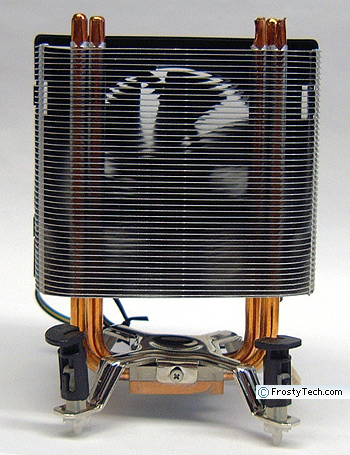

Heatsink Side A:
The body of the Akasa AK-965 stands 138mm tall. The heatsink installs with Intel's plastic clips that do not require any rear motherboard support plate. The copper base is 5mm thick, and the base block has an overall thickness of 11.3mm.

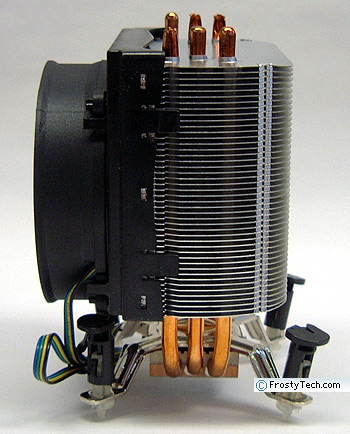

Heatsink Side B:
There are three 6mm diameter copper heatpipes in the Akasa AK-965 heatsink which run up the side, through the stacked aluminum fins where airflow is highest. Note the fan shroud and how it attaches to the body of the heatsink. The fan is mounted slightly off center so it extends 14mm below the first aluminum fin. As is common, the bulk of the cooling fins are elevated 38mm above the base of the heatsink to provide clearance for adjacent motherboard components.

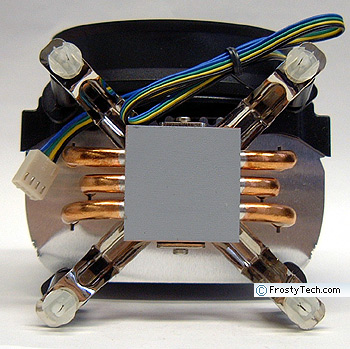

Heatsink Base:
The AK-965 heatsink has a 5mm thick copper base plate measuring 35 x 35mm in size. The base is pretty flat in both axis and comes with a thin coating of grey thermal compound applied. The copper has a sanded finish which gives it a surface roughness of ~63 microinches.

 Previous Page ° ° Next Page

Table of Contents:

 1:  Akasa AK-965 Intel Core 2 Duo Heatsink Review
 2: — 360° View - Akasa AK-965 heatsink
 3:  Acoustic Comparisons and Base Surface Quality
 4:  Intel Heatsink Temperature Comparisons
