Zalman LQ320 Liquid Cooling System Review
Zalman LQ320 Liquid Cooling System Review
  78%
Abstract: The Zalman LQ320 self contained CPU water cooling system, like Zalman's other coolers of this series (LQ310, LQ315) is built by Asetek for use with a single 120mm fan.

 Manufacturer  Category  Published  Author
Zalman   Cooling / Heatsinks   Jan 03, 2014   Max Page

Home > Reviews > Page: 360° View - Zalman LQ320

360° View - Zalman LQ320 - Water Block


Information on Frostytech's test methodology is available here.

The Zalman LQ320 waterblock stands 32mm tall. The metal mounting brackets slip over the top of the pump and lock into the barbs which surround it, so installation is pretty easy. Power is supplied to the pump by a 3-pin motherboard fan header and illuminates the top of the waterblock blue to indicate when the pump is on. Both pipe connections swivel.

The pump head measures 72mm in diameter.

The copper base plate is roughly 2mm thick and 54mm in diameter.

360° View - Zalman LQ320 - Heat Exchanger


Information on Frostytech's test methodology is available here.

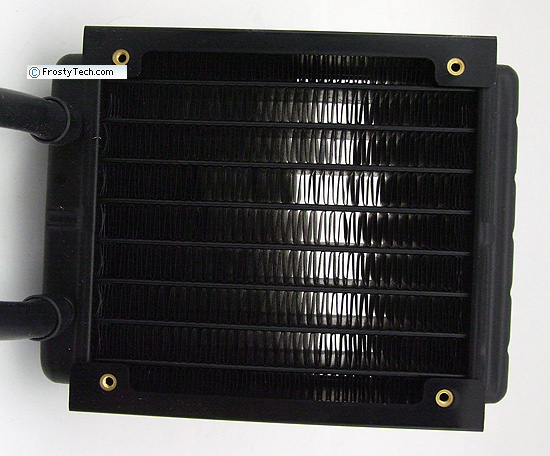

The 48mm thick aluminum heat exchanger measures 153x120mm in size and supports one or two 120mm fans, mounted back to front.

Fans can be attached on either side of the heat exchanger. The heat exchanger tubing connectors are metal and do not swivel.

Base Finish and Flatness

Flipping a heatsink over to inspect the business end is often a simple indicator of overall cooler quality. More practically speaking, a heatsink is in many ways only as effective as the contact it makes with the processor - the flatter and smoother the better. Base finish is one of the criteria that Frostytech measure in the course of evaluating heatsinks, and it involves two distinct aspects. Surface Finish is the first; this is calculated with the aid of Surface Roughness Comparator that has a cross section of common machine surface finishes and their numerical surface roughness equivalents in microinches. The second is Surface Flatness. This is tested with an engineer's straight edge or proven flat surface, in two axes.

The copper base plate of Zalman's LQ320 waterblock has a machined finish with a surface roughness of approximately ~16 microinches. The manufacturer ships it with a pre-applied circle of grey thermal compound. The copper base plate is very slightly convex in both axes.

Next, acoustic measurements and then AMD and Intel synthetic thermal test result charts.

 Previous Page ° ° Next Page

Table of Contents:

 1:  Zalman LQ320 Liquid Cooling System Review
 2: — 360° View - Zalman LQ320
 3:  Acoustic Measurements
 4:  AMD Heatsink Temperature Comparisons
 5:  Intel LGA115x/775 Heatsink Temperature Comparisons
 6:  Intel LGA2011 Heatsink Temperature Comparisons
