Cooler Master Hyper TX2 Heatsink Review
Cooler Master Hyper TX2 Heatsink Review
  82%
Abstract: In all other respects the Cooler master Hyper TX2 heatsink is a compact mid-level heatsink which is compatible with AMD socket 754/939/940/AM2 and Intel socket 775 processors. The Hyper TX2 weighs a feathery 382grams, stands less than 130mm tall.

 Manufacturer  Category  Published  Author
CoolerMaster   Cooling / Heatsinks   Dec 01, 2007   Max Page

Home > Reviews > Page: 360° View - Coolermaster Hyper TX2 Heatsink

360° View - Coolermaster Hyper TX2 Heatsink
Information on Frostytech's test methodology is available here.

The Heatsink Fan:
The 92x92x25mm Coolermaster fan spins at 1800RPM and generates about 53 dBA noise according to Frostytech's real world sound measurements. A standard 3-pin motherboard header provides power. The nine bladed impeller doesn't have a wire fan grill, so just make sure errant wires stay away from the fan blades. The hyper TX2 heatsink itself is 128mm tall.

Heatsink Frame:
With the fan and fan shroud removed, it's evident that the Hyper TX2 heatsink is a pretty model. There are about 30 thin aluminum fins and three 6mm diameter copper heatpipes running through them. Each fin is 0.38mm thick and spaced 1.75mm apart. The copper base is on 4.4mm thick at most, 1.5mm at least (where the heatpipes intersect). The socket 775 clips are the standard Intel push-to-clip variety.

Heatsink Top:
From the top of the Coolermaster Hyper TX2, the scale of the fan scoop is evident. This directs about half the exhaust air coming out of the heatsink down towards adjacent motherboard components. The fan frame has lateral slits which have been known to reduce turbulence noise.

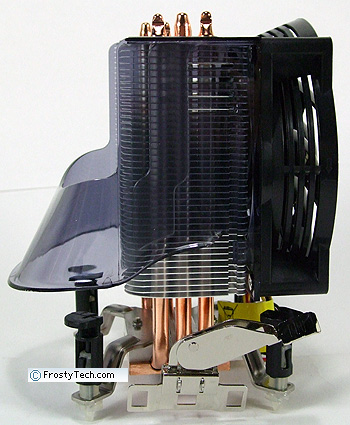

Heatsink Side A:
The scoop on the Coolermaster Hyper TX2 heatsink sticks 44mm from the rear. Like the first row of aluminum fins, it starts 38mm above the base for good capacitor clearance. The AMD K8 clip is tool free, working with the standard socket 939/AM2 heatsink retention frame. Rotating the cam lever applies clamping force on the processor below. The 1.5mm slits in the fan frame are visible from this angle as well.

Heatsink Side B:
From the rear we can see the plastic scoop which helps direct about half the airflow coming from the Coolermaster Hyper TX2 down towards motherboard level components. The upper portion, consisting of about 53mm worth of cooling fin is unaffected.

Heatsink Base:
The base of the Coolermaster Hyper TX2 heatsink is fabricated from a block of copper which is soldered to the three copper heatpipes. The base has a sanded surface finish with a surface roughness of ~32 microinches. The 40x40mm copper pad is generally flat in both axis and ships from the factory with a pre-applied patch of thermal compound. The hyper TX2 heatsink is shown with both AMD and Intel mounting clips attached for detail only.

 Previous Page ° ° Next Page

Table of Contents:

 1:  Cooler Master Hyper TX2 Heatsink Review
 2: — 360° View - Coolermaster Hyper TX2 Heatsink
 3:  Acoustic Comparisons and Base Surface Quality
 4:  AMD K8 Heatsink Temperature Comparisons
 5:  Intel LGA775 Final Heatsink Temperature Comparisons
